| Picture | Model | DN(mm) | Rated Flow(m³/h) | Rated Head(m) | Max. Head(m) | Voltage(V) | Frequency(Hz) | Power(W) | Port-to-port length(mm) | Pipe connection/Flange |
|---|---|---|---|---|---|---|---|---|---|---|
 |
Classic 32-4 | 32 | 1.7 | 2 | 4 | 230 | 50/60 | 22 | 180 | G2 |
 |
Classic E 32-6 | 32 | 2 | 3 | 6 | 230 | 50/60 | 45 | 180 | G2 |
 |
Classic E 25-6 | 25 | 2 | 3 | 6 | 230 | 50/60 | 45 | 130/180 | G1 1/2 |
 |
Mega S 50-12F | 50 | 29 | 6.5 | 12 | 220~240 | 50/60 | 600 | 280 | /Flange |
|
Mega S 50-18F | 50 | 20 | 7.6 | 18 | 230 | 50/60 | 750 | 280 | /Flange |
|
Mega S 65-12F | 65 | 25 | 6.5 | 12 | 230 | 50/60 | 750 | 340 | /Flange |
 |
Basic 32-7S Pro | 32 | 5.3 | 2.5 | 7 | 220~240 | 50 | 140/115/70 | 180 | G2 |
 |

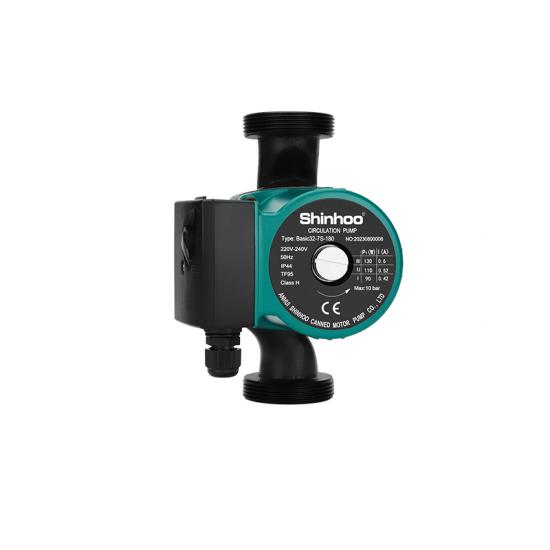

Basic 32-7S | 32 | 2.5 | 3.8 | 6.5 | 115/230 | 50/60 | 130/110/90 | 180 | G2 |
