| Picture | Model | DN(mm) | Rated Flow(m³/h) | Rated Head(m) | Max. Head(m) | Voltage(V) | Frequency(Hz) | Power(W) | Port-to-port length(mm) | Pipe connection/Flange |
|---|---|---|---|---|---|---|---|---|---|---|
 |
Classic E 20-5 | 20 | 1.5 | 2.7 | 5 | 230 | 50/60 | 32 | 130 | G1 |
 |

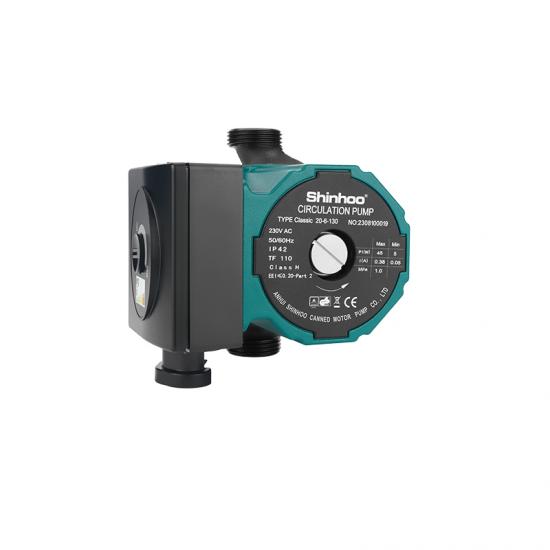

Classic 20-6 | 20 | 2 | 3 | 6 | 230 | 50/60 | 45 | 130 | G1 |
 |
Classic S 25-6 | 25 | 2 | 3 | 6 | 230 | 50/60 | 45 | 130/180 | G1 1/2 |
 |
Classic 20-7.5 | 20 | 2.5 | 4 | 7.5 | 230 | 50/60 | 70 | 130 | G1 |
 |
Classic 25-7.5 | 25 | 2.5 | 4.5 | 7.5 | 230 | 50/60 | 70 | 130/180 | G1 1/2 |
 |
Classic E 25-5 | 25 | 2 | 2.4 | 5 | 230 | 50/60 | 32 | 130/180 | G1 1/2 |
 |
Classic 32-5 | 32 | 2 | 2.4 | 5 | 230 | 50/60 | 32 | 180 | G2 |
 |
Classic 32-7.5 | 32 | 2.5 | 4.5 | 7.5 | 230 | 50/60 | 70 | 180 | G2 |
