Model |

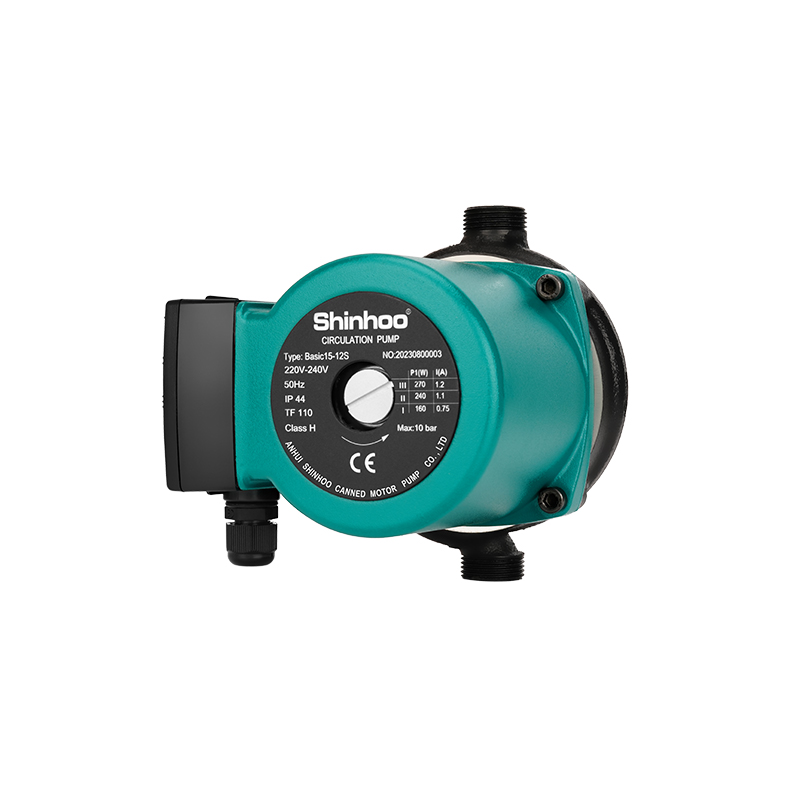

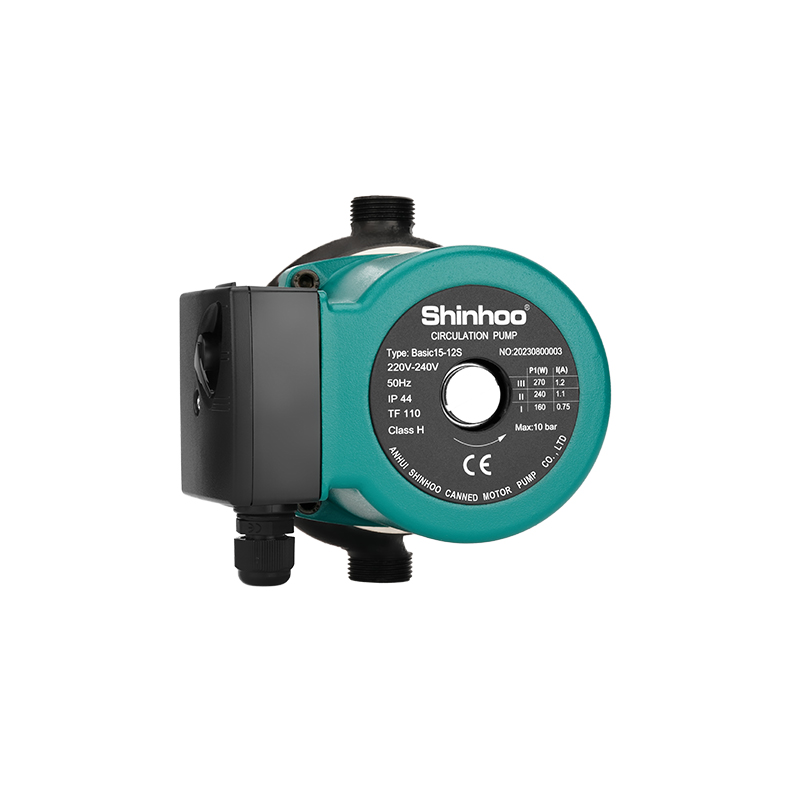

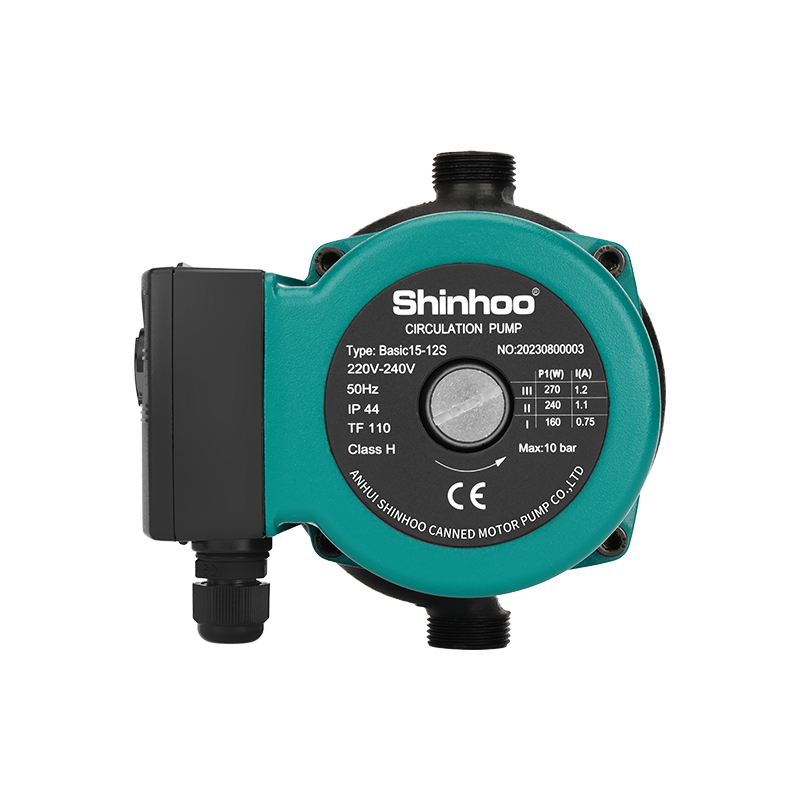

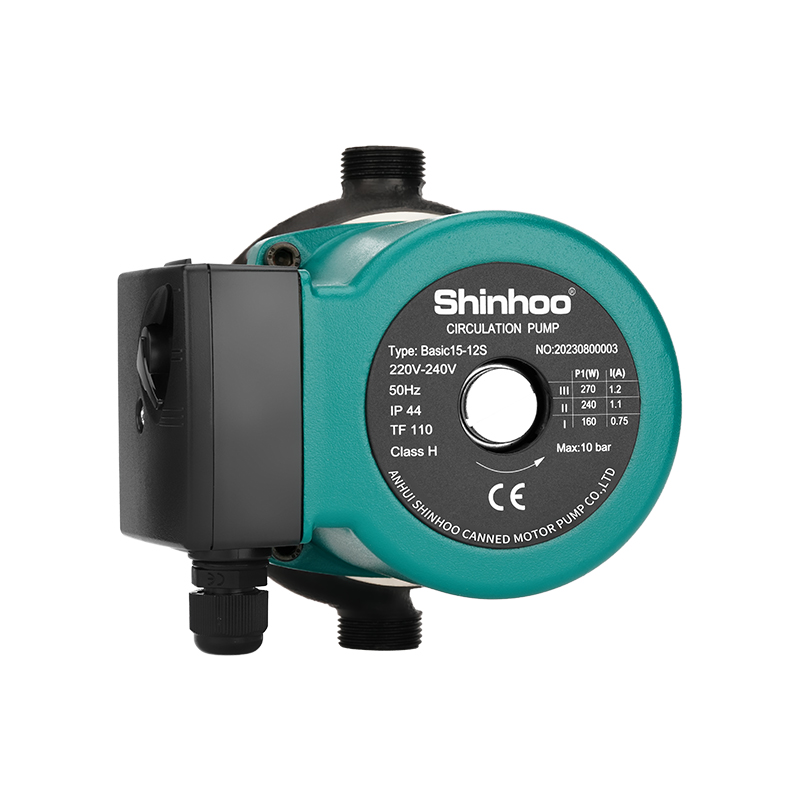

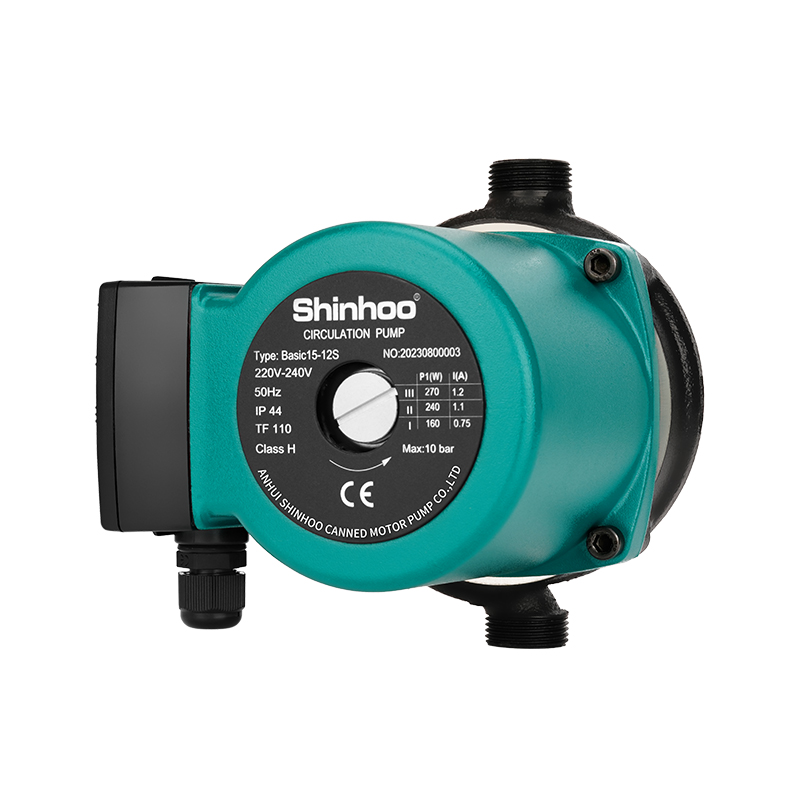

Basic 15-12S |
|
Power |
270/240/160W |
|
Max.flow |
3.5m³/h |
|
Max head |
12m |
|
Current |
1.2/1.1/0.75A |
|
Voltage/ Frequency |
115/230V 50/60HZ |
|
Pump housing |
Cast iron |
|
Pumped liquid |
Water |
|
Insulation class |
H |
|
Degree of Protection |
IP44 |
|
Liquid temperature range |
2~110℃ |
|
Max System Pressure |
1.0Mpa |
Item NO.:
Basic 15-12S1. Circulation of liquid in cooling and air-conditioning systems
2. Basic circulator pumps for cold and hot water circulation in heating and air conditioning systems.
3. The pump involves three rotational frequencies that allow selecting the best performance Sa certain hydraulic system.
4. Pumps can also be used in single pipe or double pipe heating system, also can be applied to city apartments, suburb villa, cooling, air-conditioning, boilers and solar systems etc.
5. Heating systems
6. Circulation of domestic hot water
Basic circulation pumps designed and produced by our specialists have these features: low noise, no leakage, ecological satety in operation, artistic appearance, easy installation and reliable operation.
Construction
Basic pumps are of the canned rotor type, i.e. the pump and motor form a single unit without shaft seal. This unit requires only two sealing rings and the bearings are lubricated with pumped liquid.
Advantages of Basic pumps design:
1. Single or three-speed motor.
2. Ceramic radial bearings.
3. Carbon thrust bearing.
4. A protective rotor can, external rotor cover, and bearing plate are made of stainless steel.
5. Cast iron pump housing.
6. Thermal switch integrated in the stator coil, for motors from 300 W.
Working Conditions
1. System pressure: max. 10 bar.
2. Liquid temperature: from +2 to +110 °С.

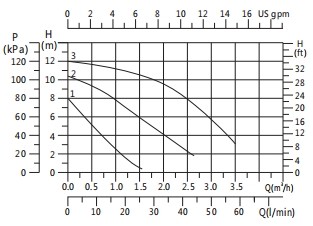

3. Users can select a model from the type spectra according to the requirment of head, flow and frequency.
4. Power supply: voltage 230V, frequency 50Hz, single-phase AC power. The models listed in the table can also be manufactured according to user's requirement as 230V/60Hz or 115V/60Hz. Curve and performance parameters in this table represent only products with power supply of 230V/50Hz.
5. Maximum system pressure: 1.0MPa.
6. Ambient temperature: 0℃ ～40℃, temperature of medium: 2 ℃ ～110 ℃. In order to avoid condensed water in stator, make sure the ambient temperature is lower than liquid temperature.
7. Medium: thin, clean, non-corrosive and non-explosive liquid, does not contain any solid particles, fibers or mineral oil. Pump must not be used for delivering flammable liquids, such as diesel and gasoline.
8. Delivering liquid of high viscosity will reduce performance of the pump, so while choosing a pump, the viscosity of the medium must be taken into consideration.
9. Maintain minimum pressure at the pump inlet to avoid cavitation noise and damage to pump bearings.
Basic series have two kinds of pipe connections：threaded and flange. Models with power above 300W mainly have flange connection. We can make customized design according to your needs.
Allowable temperature limits
1. The pump involves three rotational frequencies that allow selecting the best performance for a certain hydraulic system.
2. Ambient temperature :from 0 to 40 °С
3. Liquid temperature :from +2 to +110 °С
4. Storage temperature :from -30 to +55 °С
Sound pressure
Sound pressure depends on the power consumed:
≤ 50 dB(A) for models with P1<1,000 W
≤ 54 dB(A) for models with P1>1,000 W
Installation
During installation, the shaft of pump should be parallel to ground. Before start-up, open the venting screw on the top of the motor so that air in the pump can be released well, and then re-fasten the venting screw. This will help preventing pump from dry running.
Tags :
Model Max. flow Power Rated flow Rated head Rated current Material of Pump body (m³/h) (W) (m³/h) (m) (A) Basic Pro 25-12SL-200 5 300 3.5 9 1.5 cast iron Basic Pro 25-12SXL-180 6.5 500 5 9 2.5 cast iron Basic Pro 25-12SXL-220 6.5 500 5 9 2.5 cast iron
Model Basic 15-9S Power 120/80/65W Max.flow 1.8m³/h Max head 9m Current 0.53/0.4/0.25A Voltage/ Frequency 115/230V 50/60HZ Pump housing Cast iron Pumped liquid Water Insulation class H Degree of Protection IP44 Liquid temperature range 2-110℃ Max System Pressure 1.0Mpa
Model Basic 20-5S/Basic 20-5SB/Basic 20-5SN/Basic 20-5SQ/Basic 20-5SP Power 85/60/40W Max.flow 2.8m³/h Max head 5m Current 0.4/0.3/0.22A Voltage/ Frequency 115/230V 50/60HZ Pump housing cast iron, stainless steel body(N) ,copper body(B) ,Bronze(Q) and Plastic (P) Pumped liquid Water Insulation class H Degree of Protection IP44 Liquid temperature range 2-110℃ Max System Pressure 1.0Mpa
Model Basic 20-6S,Basic 20-6SN Power 100/70/55W Max.flow 2.8m³/h Max head 6m Current 0.45/0.35/0.25A Voltage/ Frequency 115/230V 50/60HZ Pump housing cast iron, stainless steel body(N) ,copper body(B) ,Bronze(Q),Plastic (P) Pumped liquid Water Insulation class H Degree of Protection IP44 Liquid temperature range 2-110℃ Max System Pressure 1.0Mpa
Model Basic 20-7S, Basic 20-7SB, Basic 20-7SN,Basic 20-7SQ,Basic 20-7SP Power 130/110/90W Max.flow 3.5m³/h Max head 7m Current 0.6/0.52/0.42A Voltage/ Frequency 115/230V 50/60HZ Pump housing cast iron, stainless steel body(N) ,copper body(B) ,Bronze(Q) and Plastic (P) Pumped liquid Water Insulation class H Degree of Protection IP44 Liquid temperature range 2-110℃ Max System Pressure 1.0Mpa
Rated Voltage/Frequency 230V/50Hz Insulation class Class H IP class IP44 Noise Index ≤50dB(A) Max System Pressure 10bar(1.0 MPa) Medium liquid Clean water Certification CCC\GS\UL\CE\RoHS\REACH\EEI
Rated Voltage/Frequency 230V/50Hz Insulation class Class H IP class IP44 Noise Index ≤50dB(A) Max System Pressure 10bar(1.0 MPa) Medium liquid Clean water Certification CCC\GS\UL\CE\RoHS\REACH\EEI
Model Basic 32-9F Power 300W Max.flow 8m³/h Max head 9m Current 1.5A Voltage/ Frequency 115/230V 50HZ Pump housing Cast iron Pumped liquid Water Insulation class H Degree of Protection IP44 Liquid temperature range 2-110℃ Max System Pressure 1.0Mpa
Model Basic 80-12SF Pro Power 1500W Max.flow 40m³/h Max head 12m Voltage/ Frequency 380V /50HZ Pump housing Cast iron Pumped liquid Water Insulation class H Degree of Protection IP42 Liquid temperature range 2~110℃ Max System Pressure 1.0Mpa
Model Basic 50-12F Pro Power 1000W Max.flow 28m³/h Max head 12m Current 4.7A Voltage/ Frequency 220~240V 50HZ Pump housing Cast iron Pumped liquid Water Insulation class H Degree of Protection IP44 Liquid temperature range 2-110℃ Max System Pressure 1.0Mpa
Operation range Feed up to 2.8 m³/h Head up to 12 m Supply voltage 1 x 230 V Liquid temperature from 2 to +60 °C Ambient temperature from 2 to +40 °C Max. operating pressure 6 bar Connection of PROMO 15-12A G 3/4"
Model Basic 50-16SF Pro Power 1300/1000/900W Max.flow 30m³/h Max head 16m Voltage/ Frequency 380V/50HZ Pump housing Cast iron Pumped liquid Water Insulation class H Degree of Protection IP44 Liquid temperature range 2~110℃ Max System Pressure 1.0Mpa
