Model |
Basic 80-12SF |
|
Power |
1300/1000/900W |
|
Max.flow |
41.23/35/33m³/h |
|
Max head |
12.22/10/9.3m |
|
Voltage/ Frequency |
220/380V 3pH 50HZ |
|
Pump housing |
Cast iron |
|
Pumped liquid |
Water |
|
Insulation class |
H |
|
Degree of Protection |
IP42 |
|
Liquid temperature range |
2-110℃ |
|
Max System Pressure |
1.0Mpa |
Item NO.:

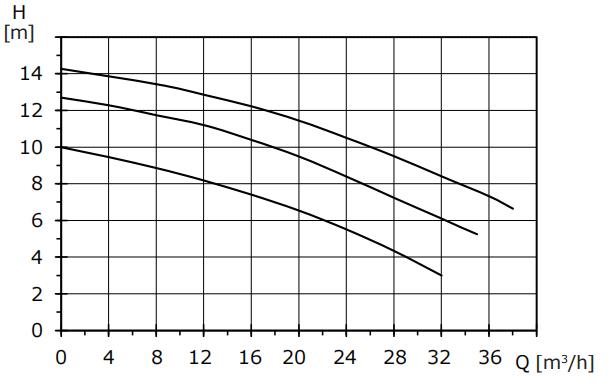

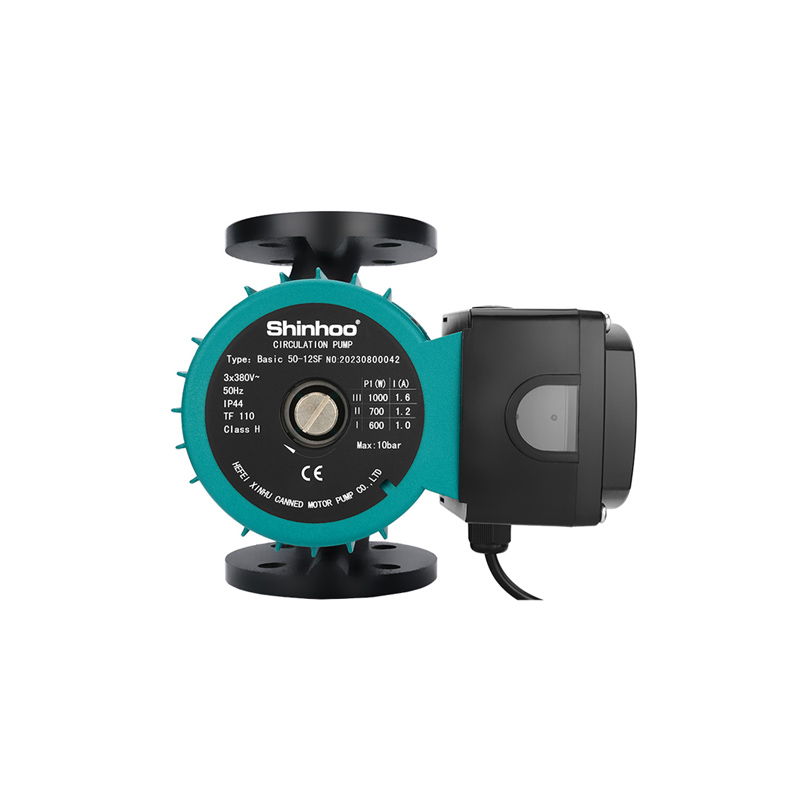

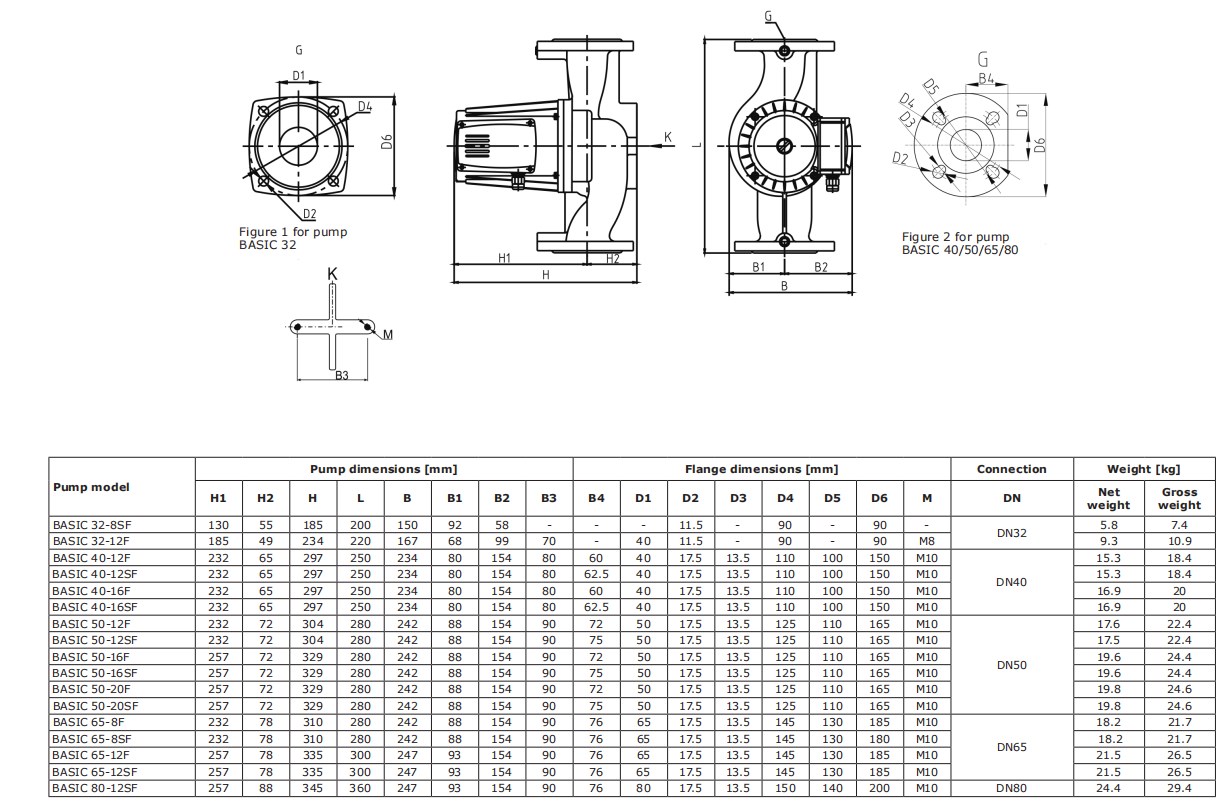

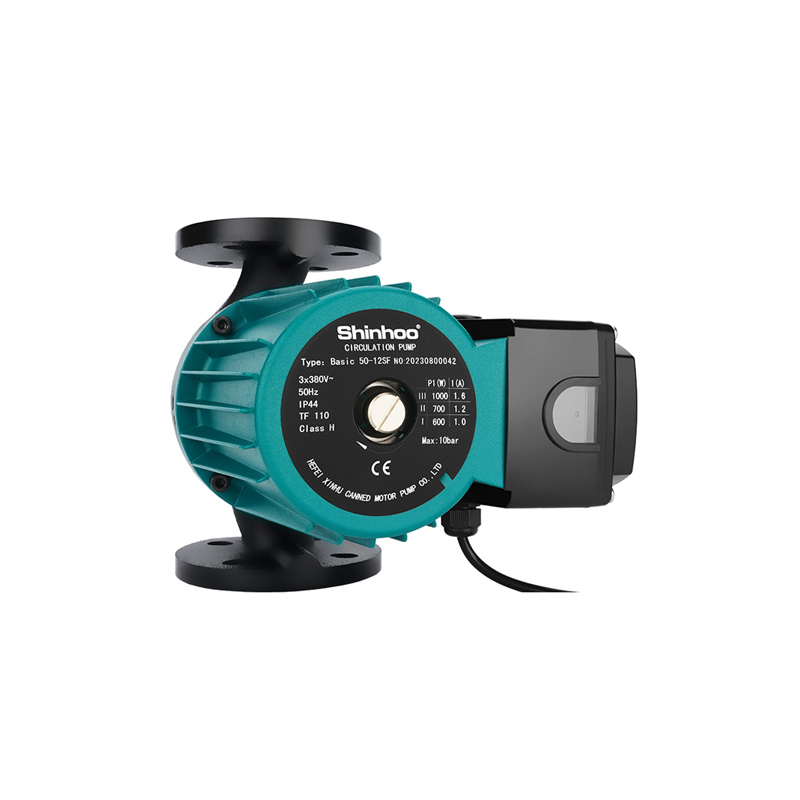

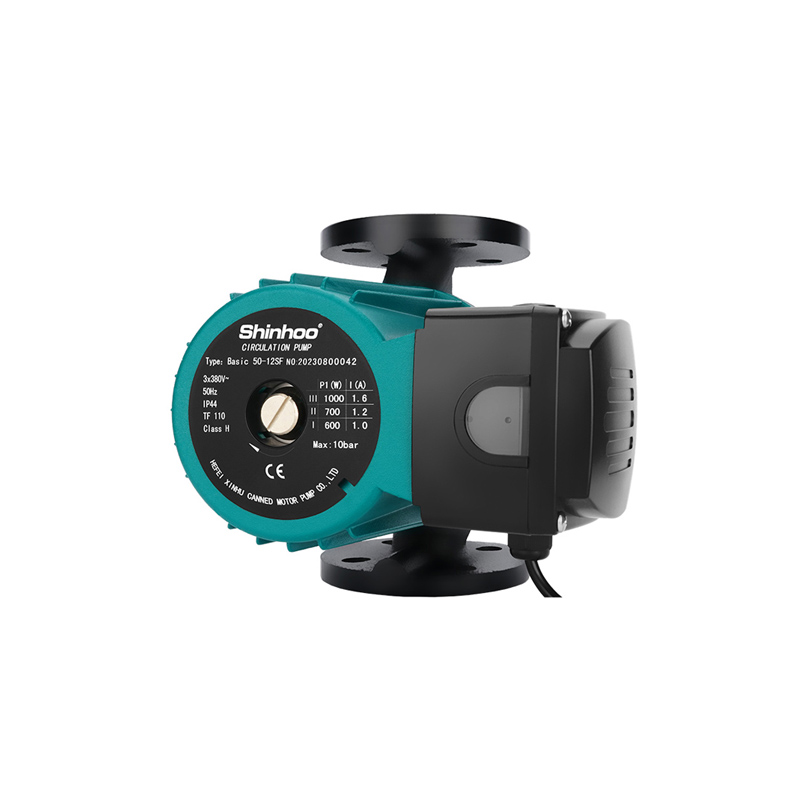

Basic 80-12SF1. Commercial heating systems
2. Domestic hot water recirculation
3. Domestic heating systems
4. Hot-water heating systems of all kinds systems
5. Industrial circulation systems
6. Cold water systems and air-conditioning systems
Basic circulation pumps designed and produced by our specialists have these features: low noise, no leakage, ecological satety in operation, artistic appearance, easy installation and reliable operation.
Construction
Basic pumps are of the canned rotor type, i.e. the pump and motor form a single unit without shaft seal. This unit requires only two sealing rings and the bearings are lubricated with pumped liquid.
Advantages of Basic pumps design:
1. Single or three-speed motor.
2. Ceramic radial bearings.
3. Carbon thrust bearing.
4. A protective rotor can, external rotor cover, and bearing plate are made of stainless steel.
5. Cast iron pump housing.
6. Thermal switch integrated in the stator coil, for motors from 300 W.
Working Conditions
1. System pressure: max. 10 bar.
2. Liquid temperature: from +2 to +110 °С.
3. Users can select a model from the type spectra according to the requirement of head, flow and frequency.
4. Power supply: voltage 230V, frequency 50Hz, single-phase AC power. The models listed in the table can also be manufactured according to user's requirement as 230V/60Hz or 115V/60Hz. Curve and performance parameters in this table represent only products with power supply of 230V/50Hz.
5. Maximum system pressure: 1.0MPa.
6. Ambient temperature: 0℃ ～40℃, temperature of medium: 2 ℃ ～110 ℃. In order to avoid condensed water in stator, make sure the ambient temperature is lower than liquid temperature.
7. Medium: thin, clean, non-corrosive and non-explosive liquid, does not contain any solid particles, fibers or mineral oil. Pump must not be used for delivering flammable liquids, such as diesel and gasoline.
8. Delivering liquid of high viscosity will reduce performance of the pump, so while choosing a pump, the viscosity of the medium must be taken into consideration.
9. Maintain minimum pressure at the pump inlet to avoid cavitation noise and damage to pump bearings.
Basic series have two kinds of pipe connections：threaded and flange. Models with power above 300W mainly have flange connection. We can make customized design according to your needs.
Pump housing is generally made of cast iron. Bronze and stainless steel pump housing is also available.
Pump with cast iron housing is widely used for delivering water for room heating. Pump with bronze housing is largely used in the floor heating system. For delivering domestic hot water we recommend using pump with stainless steel housing(N) or bronze housing(B).
Allowable temperature limits
1. The pump involves three rotational frequencies that allow selecting the best performance for a certain hydraulic system.
2. Ambient temperature :from 0 to 40 °С
3. Liquid temperature :from +2 to +110 °С
4. Storage temperature :from -30 to +55 °С
Sound pressure
Sound pressure depends on the power consumed:
≤ 50 dB(A) for models with P1<1,000 W
≤ 54 dB(A) for models with P1>1,000 W
Installation
During installation, the shaft of pump should be parallel to ground. Before start-up, open the venting screw on the top of the motor so that air in the pump can be released well, and then re-fasten the venting screw. This will help preventing pump from dry running.
Tags :
Model Basic 32-12F Power 500W Max.flow 10.5m³/h Max head 12m Current 2.5A Voltage/ Frequency 115/230V 50HZ Pump housing Cast iron Pumped liquid Water Insulation class H Degree of Protection IP44 Liquid temperature range 2~110℃ Max System Pressure 1.0Mpa
Model Basic 40-12F Power 700W Max.flow 14m³/h Max head 12m Current 3.4A Voltage/ Frequency 230V 50HZ Pump housing Cast iron Pumped liquid Water Insulation class H Degree of Protection IP44 liquid temperature range 2-110℃ Max System Pressure 1.0Mpa
Model Basic 40-16F Power 1000W Max.flow 16m³/h Max head 16m Current 4.9A Voltage/ Frequency 230V 50HZ Pump housing Cast iron Pumped liquid Water Insulation class H Degree of Protection IP44 Liquid temperature range 2-110℃ Max System Pressure 1.0Mpa
Model Basic 50-12F Power 1000W Max.flow 28m³/h Max head 12m Current 4.9A Voltage/ Frequency 230V 50HZ Pump housing Cast iron Pumped liquid Water Insulation class H Degree of Protection IP44 Liquid temperature range 2-110℃ Max System Pressure 1.0Mpa
Model Basic 50-16F Power 1300W Max.flow 27m³/h Max head 16m Current 5.8A Voltage/ Frequency 230V 50HZ Pump housing Cast iron Pumped liquid Water Insulation class H Degree of Protection IP44 Liquid temperature range 2-110℃ Max System Pressure 1.0Mpa
Model Basic 50-20F Power 1300W Max.flow 22m³/h Max head 20m Current 5.8A Voltage/ Frequency 230V 50HZ Pump housing Cast iron Pumped liquid Water Insulation class H Degree of Protection IP44 Liquid temperature range 2-110℃ Max System Pressure 1.0Mpa
Model Basic 65-5F Power 700W Max.flow 26m³/h Max head 5m Current 3.4A Voltage/ Frequency 230V 50HZ Pump housing Cast iron Pumped liquid Water Insulation class H Degree of Protection IP44 Liquid temperature range 2-110℃ Max System Pressure 1.0Mpa
Model Basic 65-8F Power 700W Max.flow 34m³/h Max head 8m Current 3.4A Voltage/ Frequency 230V 50HZ Pump housing Cast iron Pumped liquid Water Insulation class H Degree of Protection IP44 Liquid temperature range 2-110℃ Max System Pressure 1.0Mpa
Model Basic 65-10F Power 1000W Max.flow 36m³/h Max head 10m Current 4.9A Voltage/ Frequency 230V 50HZ Pump housing Cast iron Pumped liquid Water Insulation class H Degree of Protection IP44 Liquid temperature range 2-110℃ Max System Pressure 1.0MPa
Model Basic 80-10F Power 1000W Max.flow 35m³/h Max head 10m Current 4.9A Voltage/ Frequency 230V 50HZ Pump housing Cast iron Pumped liquid Water Insulation class H Degree of Protection IP44 Liquid temperature range 2-110℃ Max System Pressure 1.0MPa
Model Basic 80-12F Power 1300W Max.flow 41m³/h Max head 12m Current 5.8A Voltage/ Frequency 230V 50HZ Pump housing Cast iron Pumped liquid Water Insulation class H Degree of Protection IP44 Liquid temperature range 2~110℃ Max System Pressure 1.0MPa
Model Basic 40-12SF Power 700/450/400W Max.flow 14/11.2/8m³/h Max head 14.5/12.5/11m Voltage/ Frequency 220/380V 3pH 50HZ Pump housing Cast iron Pumped liquid Water Insulation class H Degree of Protection IP42 Liquid temperature range 2-110℃ Max System Pressure 1.0Mpa
