| Picture | Model | DN(mm) | Rated Flow(m³/h) | Rated Head(m) | Max. Head(m) | Voltage(V) | Frequency(Hz) | Power(W) | Port-to-port length(mm) | Pipe connection/Flange |
|---|---|---|---|---|---|---|---|---|---|---|
 |

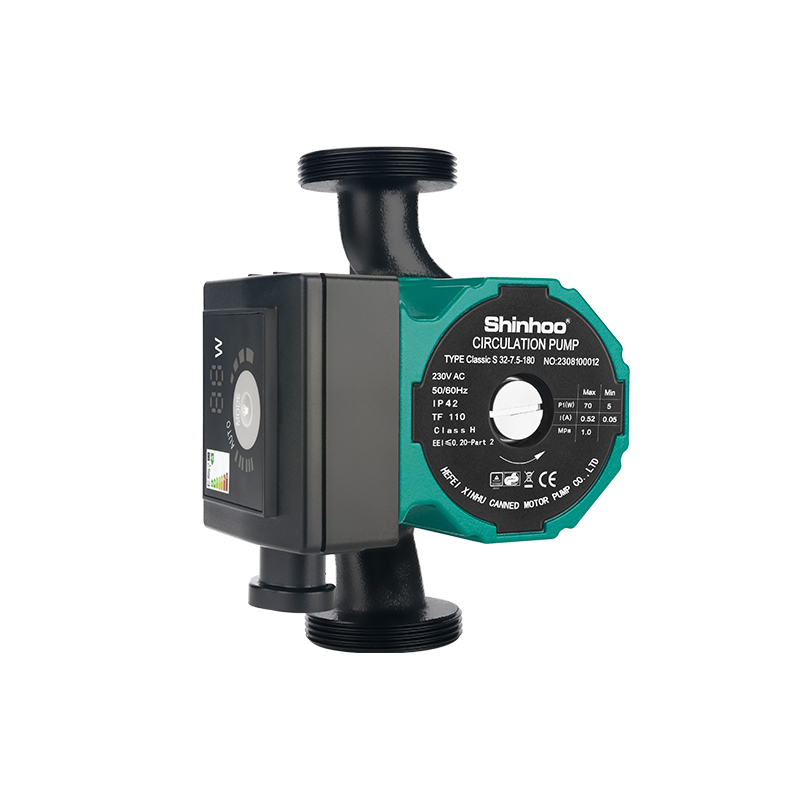

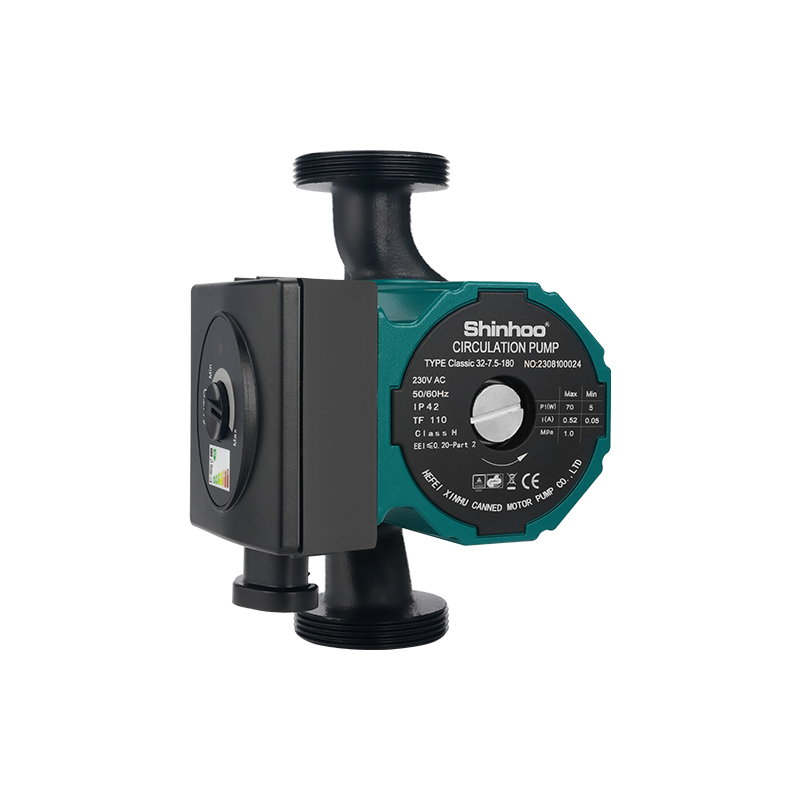

Classic 32-7.5 | 32 | 2.5 | 4.5 | 7.5 | 230 | 50/60 | 70 | 180 | G2 |
 |
Classic E 32-5 | 32 | 2 | 2.4 | 5 | 230 | 50/60 | 32 | 180 | G2 |
 |

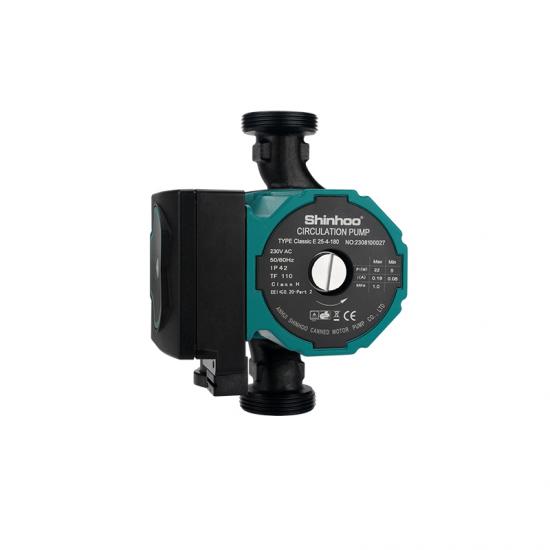

Classic E 25-4 | 25 | 1.7 | 2 | 4 | 230 | 50/60 | 22 | 130/180 | G1 1/2 |
 |

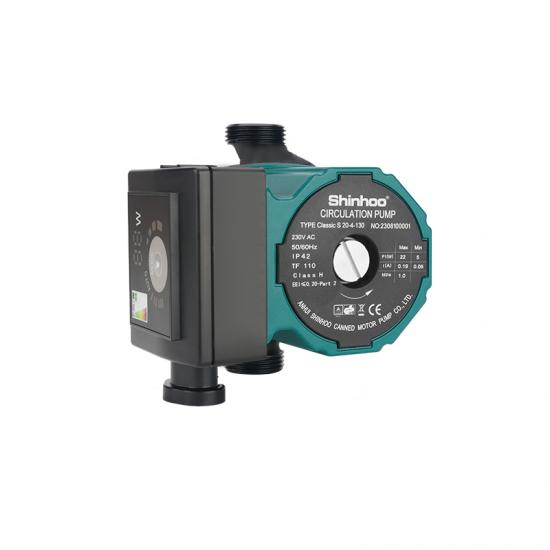

Classic S 20-4 | 20 | 1.5 | 2 | 4 | 230 | 50/60 | 22 | 130 | G1 |
 |
Classic S 25-4 | 20 | 1.7 | 2 | 4 | 230 | 50/60 | 22 | 130/180 | G1 1/2 |
 |
Classic E 25-6 | 25 | 2 | 3 | 6 | 230 | 50/60 | 45 | 130/180 | G1 1/2 |
 |
Classic E 32-4 | 32 | 1.7 | 2 | 4 | 230 | 50/60 | 22 | 180 | G2 |
 |
Mega 25-10 | 25 | 5 | 6.5 | 10 | 230 | 50/60 | 185 | 180 | G1 1/2 |
 |
Mega 25-8 | 25 | 4 | 5.5 | 8 | 230 | 50/60 | 130 | 180 | G1 1/2 |
 |
Mega 25-6 | 25 | 4 | 3.5 | 6 | 230 | 50/60 | 90 | 180 | G1 1/2 |
 |
Mega 25-12 | 25 | 5.5 | 7.5 | 12 | 220~240 | 50/60 | 230 | 180 | DN25 |
|
Mega 32-12 | 25 | 5.5 | 7.5 | 12 | 220~240 | 50/60 | 230 | 180 | DN25 |
 |
Mega S 40-20F | 40 | 15.8 | 10.8 | 20 | 230 | 50/60 | 750 | 377 | DN40/Flange |
 |
Mega 40-12F | 40 | 6 | 6.5 | 12 | 230 | 50/60 | 250 | 220 | /Flange |
 |
Mega S 50-18F | 50 | 20 | 7.6 | 18 | 230 | 50/60 | 750 | 280 | /Flange |
 |
Mega 40-10F | 40 | 5 | 6 | 10 | 230 | 50/60 | 185 | 220 | /Flange |
 |
Mega S 80-8F | 80 | 37 | 5 | 8 | 230 | 50/60 | 750 | 391 | DN80/Flange |
|
Mega S 65-12F | 65 | 25 | 6.5 | 12 | 230 | 50/60 | 750 | 340 | /Flange |
 |
Classic E 20-6 | 20 | 2 | 3 | 6 | 230 | 50/60 | 45 | 130 | G1 |
 |
Mega 32-6 | 32 | 4 | 3.5 | 6 | 230 | 50/60 | 90 | 180 | G2 |
 |
Mega 32-8 | 32 | 4 | 5.5 | 8 | 230 | 50/60 | 130 | 180 | G2 |
 |
Classic S 32-4 | 32 | 1.7 | 2 | 4 | 230 | 50/60 | 22 | 180 | G2 |
 |
Classic S 20-5 | 20 | 1.5 | 2.7 | 5 | 230 | 50/60 | 32 | 130 | G1 |
 |
Mega 32-10 | 32 | 5.5 | 5.5 | 10 | 230 | 50/60 | 185 | 180 | G2 |
 |
Mega 40-6F | 40 | 4 | 3.7 | 6 | 230 | 50/60 | 90 | 220 | /Flange |
 |
Mega 40-8F | 40 | 5 | 4.2 | 8 | 230 | 50/60 | 130 | 220 | /Flange |
