Maximum flow |
10 m³/h |
|
Maximum head |
12m |
|
Rated flow |
5.5m³/h |
|
Rated head |
7.5m |
|
Rated voltage |
AC 220-240V |
|
Rated current |
1.2A |
|
Frequency |
50/60Hz |
|
Maximum power |
230 W |
|
Design pressure |
1.0MPa |
|
Noise |
＜40dB(A) |
|
Standby power |
≤4W |
|
Degree of protection |
IP44 |
|
Surge current |
＜10A |
|
Speed |
1000～4900rpm |
|
Temperature class |
TF110 |
|
Weight of bare pump with wire |
5kg±5% |
Item NO.:

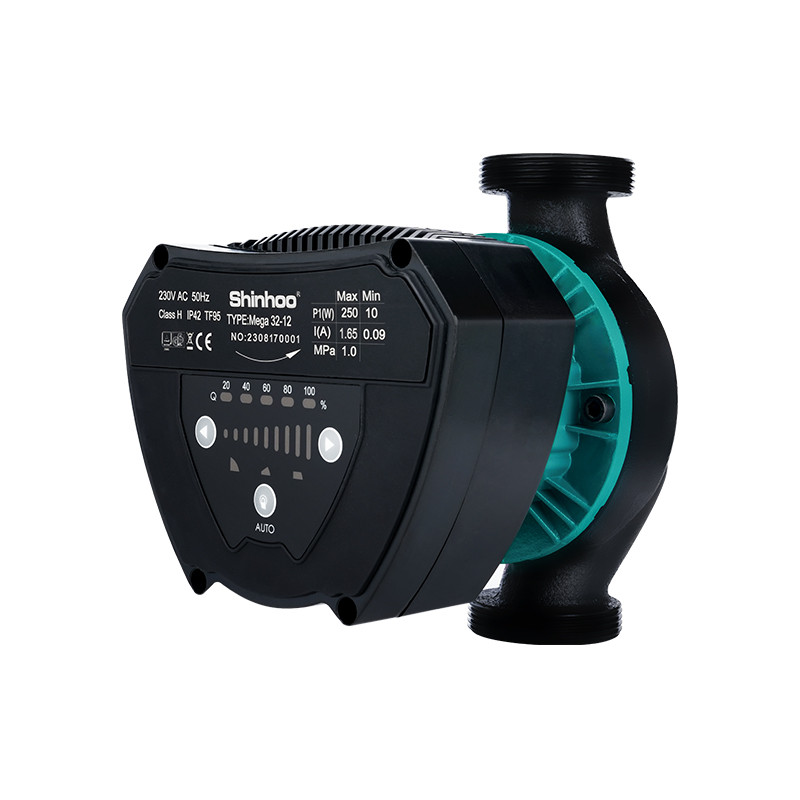

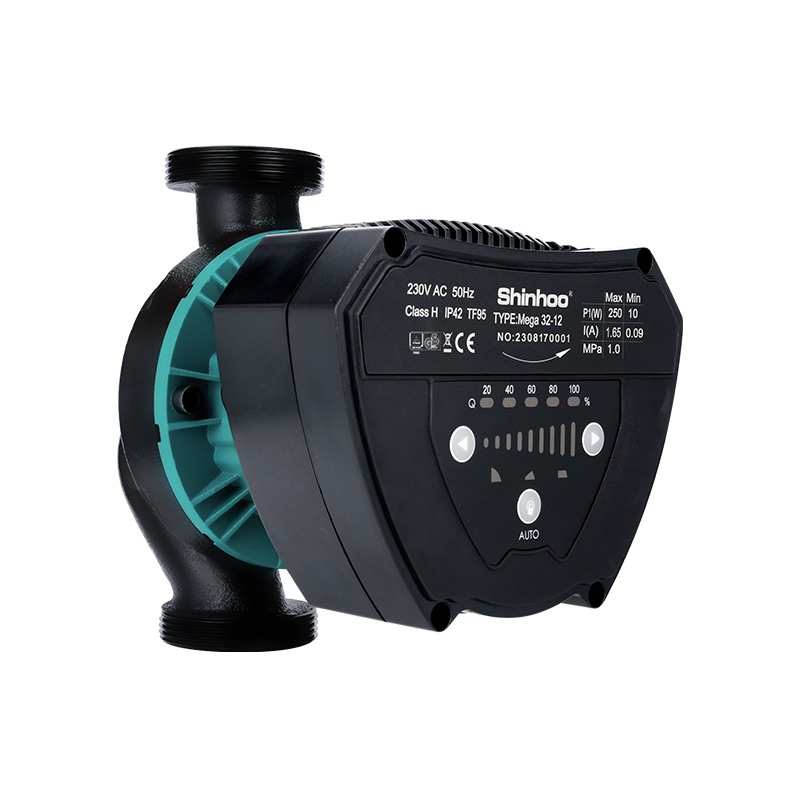

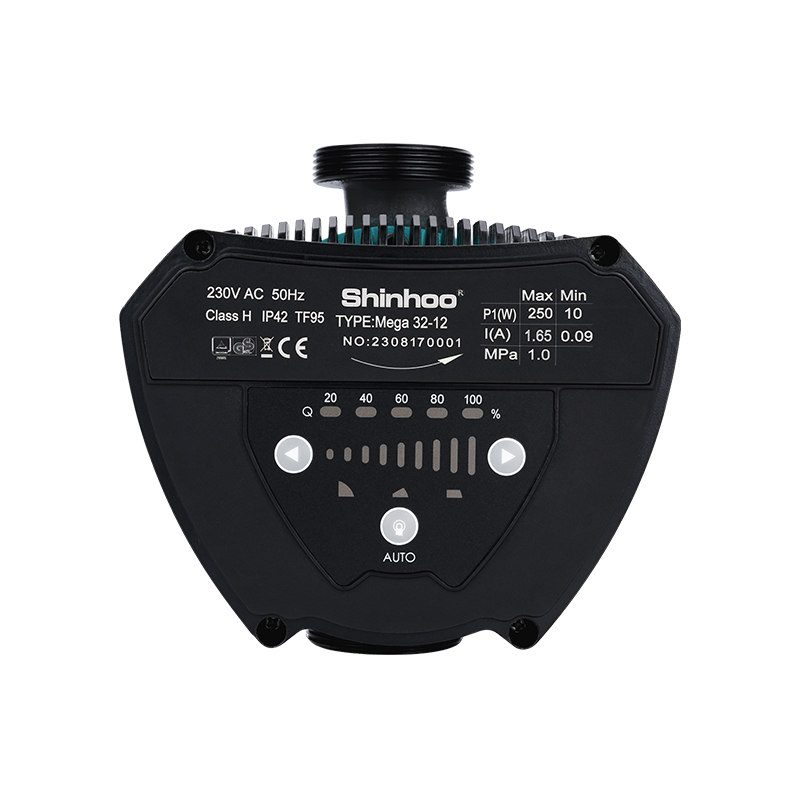

Mega 32-12Scope of use
Heat pump dual supply system, underfloor heating mixed water system, heat pump hot water system, HVAC, boiler system, and other heating and cooling occasions.
Suitable for refrigerants such as R290.
Product certification
The product meets the certification requirements of CE、TUV、EMC、RoHS、REACH、EEI≤0.23-part2
Note：RoHS2.0 and REACH are third-party test reports.
Startup time: the starting time of the circulating pump is less than 8S, that is, the time from power on to reach the maximum speed.

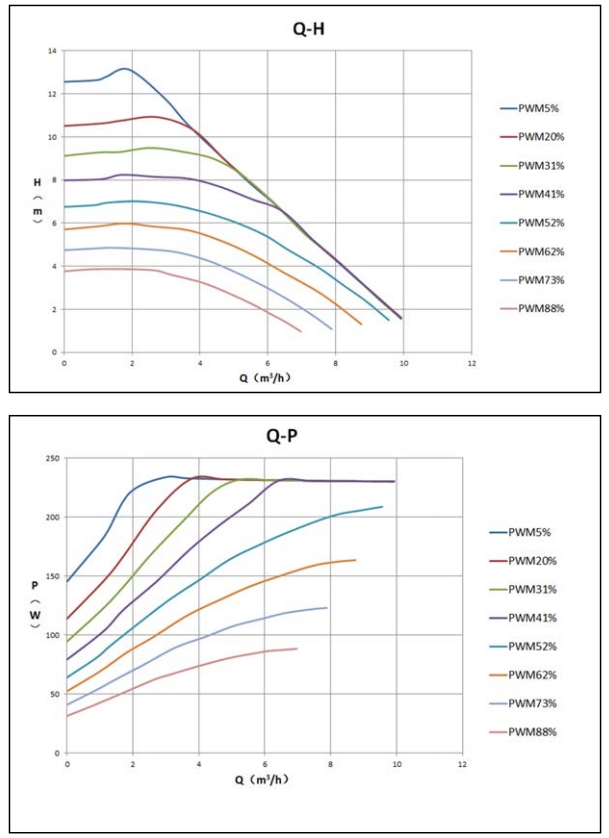

In PWM mode, when starting the circulating pump from the stop state (without power supply), 90% of the maximum speed must be reached in at most 8 seconds;
In PWM mode, start from standby mode to reach 90% of the maximum speed in at most 8seconds.
Shutdown time: the shutdown time of the circulating pump is less than 1s, that is, the time from power failure to shutdown of the circulating pump.
Motor type
|
Insulation level: H |
Enameled wire material: copper |
Magnetic steel material: neodymium iron boron |
||
|
DC cold resistance of motor at 20 ℃: 8.6 ± 5% Ω |
Motor type: permanent magnet synchronous motor |
|||
Media requirements
|
Medium: water or water + glycol (≤ 50%) mixture |
Medium temperature: -20℃～110℃ |
|
|
PH value of medium：6.5～8.5 |
Medium hardness：≤25°dH |
|
|
Content of solid impurities in medium: diameter and length direction of solid impurities ≤ 0.1mm, and volume ratio ≤0.1%. |
||
Service environment requirements
|
Usage: keep the shaft horizontal |
Altitude: ＜ 1000m |
|
Operating ambient temperature:-30℃∼70℃ (there is no freezing in the pipeline and circulating pump) |
Operating ambient humidity≤95% |
Storage environment requirements
|
Storage ambient temperature: - 30 ℃～ 70 ℃ (there is no freezing in the pipeline and circulating pump) |
Humidity of storage environment: ≤95% |
Comparison Table of Water Temperature and Inlet Pressure
|
Liquid temperature |
＜75℃ |
95℃ |
110℃ |
|||
|
Inlet pressure |
0.5bar |
1bar |
1.5bar |
|||
|
5 m head |
10 m head |
15 m head |
||||
