Rated voltage |
380V |
Rated head |
48m |
|
Rated flow |
8m³/h |
Max. head |
59m |
|
Max. flow |
15m³/h |
Insulation class |
F |
|
Design pressure |
10bar |
Vibration |
＜2.8mm/s |
|
Protection class |
IP54 |
Frequency |
50Hz |
|
Rated current |
4.01A |
Rated power |
1850W |
|
Noise |
＜62dB(A) |
Max.power |
2200W |

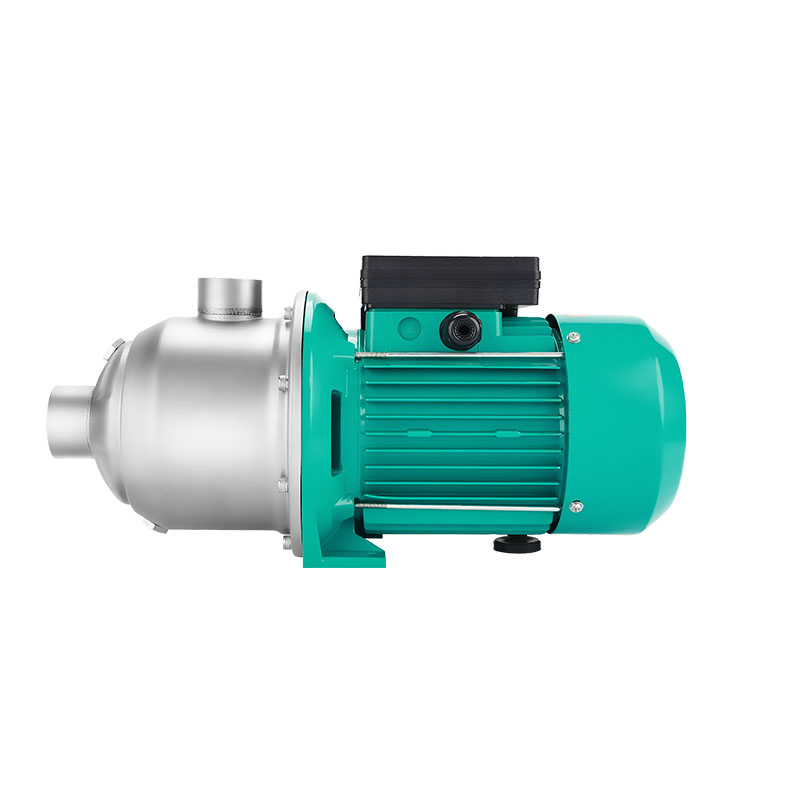

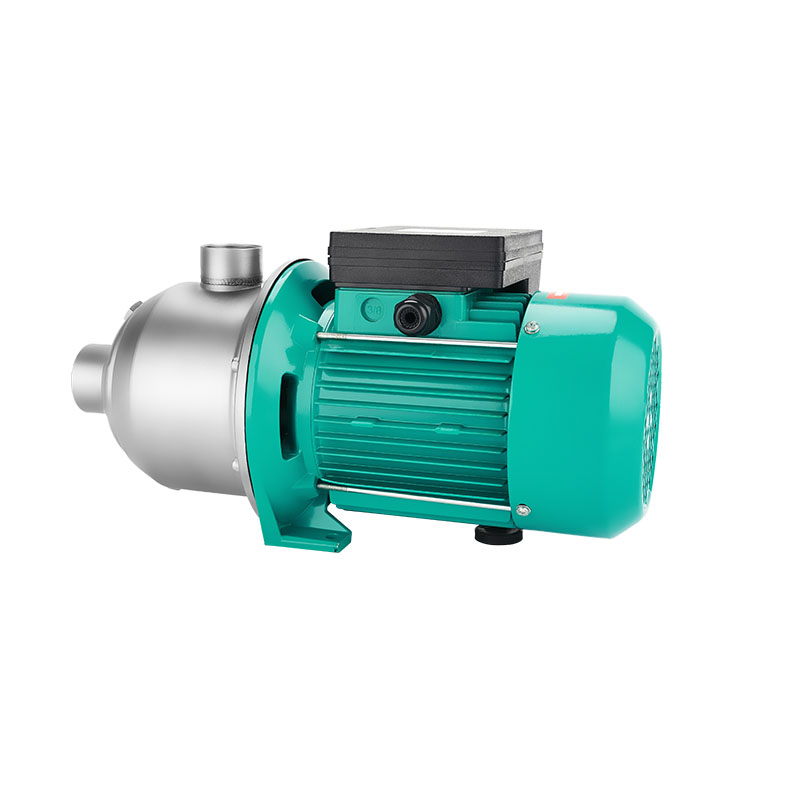

Item NO.:
MHI-805Q1. Water supply and booster
2. Hot water circulation, heating system
3. Industrial circulating system
4. For various machinery
5. Integrated pump for heat pump system

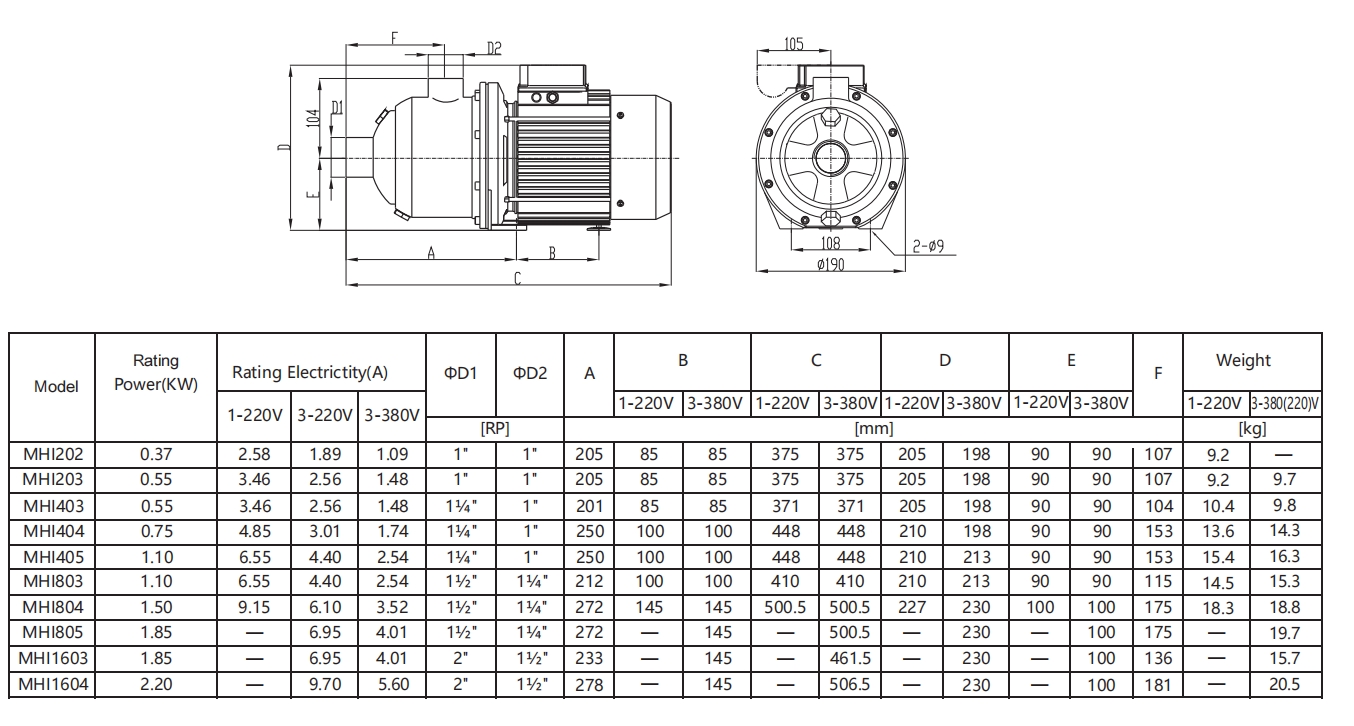

1. Material – Stainless steel
2. Multi-stage impeller, high head
3. Bidirectional mechanical seal, easy maintenance
4. Compact block design
5. All hydraulic parts which come into contact with the fluid, such as stage chambers, impellers and diffusors
Working conditions
1. Power supply: 1～220V/50Hz;
2. Maximum system pressure: ≤1.0MPa;
3. Insulation class: F;
4. Protection level: IP54;
5. The temperature of the conveying liquid:-15℃～90℃ ;
6.Delivery liquid: clean water ;
7. This water pump is suitable for conveying drinking water, hot water, industrial water, condensate water, a mixture of ethanol and water (with a maximum ethanol content of 40%), and other liquids that do not contain mineral oil, long fibers, or corrosive substances.
Design notes
1. Motor protection for three-phase AC motor is optional or to be provided on-site
2. Single-phase AC motor equipped with built-in thermal motor protection and capacitor
Product certification
The product complies with 3C certification requirements
Application Medium Requirements
|
Use medium: clear water/water+ethylene glycol (≤50%) mixed solution |
Medium water temperature: 0～110℃/-15℃～110℃ |
|
Medium PH value：6.5-8.5 |
Medium hardness：25°dH |
|
Solid impurity content in the medium: solid impurity diameter and length direction ≤ 0.1mm, and volume ratio ≤ 0.1% |
|
Service environment requirements
|
Usage: keep the shaft horizontal |
Altitude: ＜ 1000m |
|
Operating ambient temperature: -30 ℃ ∼ 55 ℃(there is no freezing in the pipeline and water pump) |
Operating ambient humidity: ≤95% |
Storage environment requirements
Storage ambient temperature: -20℃∼60℃(there is no freezing in the pipeline and water pump)
Humidity of storage environment: ≤95%
Factory inspection
|
Machine tightness detection |
Motor insulation detection |
Withstand voltage detection |
|
Leakage current detection |
Ground Resistance Detection |
No-load power, current detection |
|
turn detection |
|
|
Reliability test
|
Hydraulic performance test |
Vibration test |
Noise test |
|
Water pressure test |
Whole machine electrical safety test |
Protection level test |
|
Salt spray test |
Thermal shock test |
Temperature rise |
|
Condensate Test |
Life test |
Start-stop test |
|
High temperature and humidity test |
|
|
Installation and safety instructions
1. The pumped liquid may be high-temperature and high-pressure liquid. Before moving and disassembling the pump, the liquid in the system must be drained or the stop valves on both sides of the pump must be closed to avoid burns.
2. In winter, when the medium is clean water, if the pump system is not running or the ambient temperature is lower than 0°C, the liquid in the pipeline system should be drained to avoid freezing and cracking of the pump body.
3. If the pump is not used for a long time, please close the water pipe valve at the inlet and outlet of the pump and cut off the power supply of the pump. If you find that the motor is hot or abnormal, please immediately close the valve at the inlet end of the pump, cut off the power supply of the pump, and contact your local dealer or service center immediately.
4. This product should be placed out of the reach of children. After installation, isolation measures should be taken to prevent children from touching it.
5. The installation direction of the water pump is that the axial direction of the pump is horizontal.
6. The water pump needs to be installed to prevent rain, water, exposure and other places.
7. The water pump cannot directly collide with hard objects.
8. It is forbidden to run the water pump without water to prevent the wear and tear of the mechanical seal, or even burn the machine.
9. The pumped liquid is thin, clean, non-corrosive and non-explosive liquid, does not contain any fiber or mineral oil, and the diameter and length of solid particles are ≤0.1mm, and the volume ratio is ≤0.1%. The pump must not For conveying flammable liquids such as vegetable oil and gasoline. If the pump is used in a situation with high viscosity, the performance of the pump will be reduced, so when selecting a pump, the viscosity of the liquid medium to be transported should be considered.
Performance curve
This performance curve is suitable for normal temperature water, such as pump for non-water medium, the hydraulic performance of the pump will be reduced , therefore ,in the selection of pump, must consider the characteristics of the liquid medium.

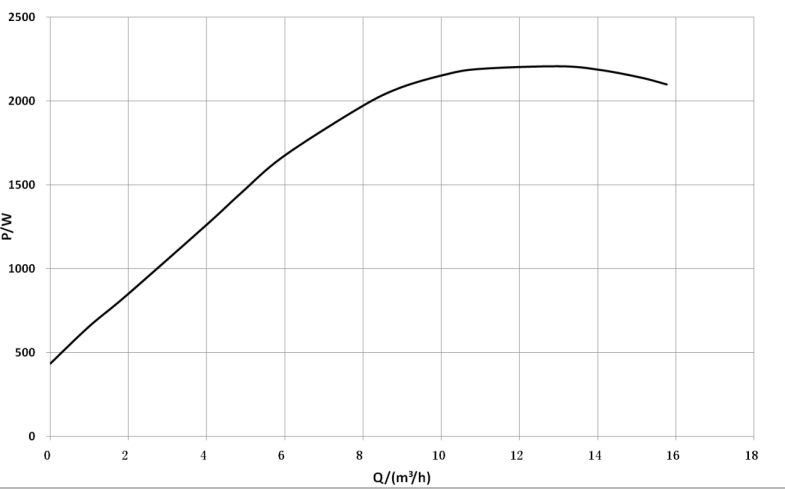

Flow-Power

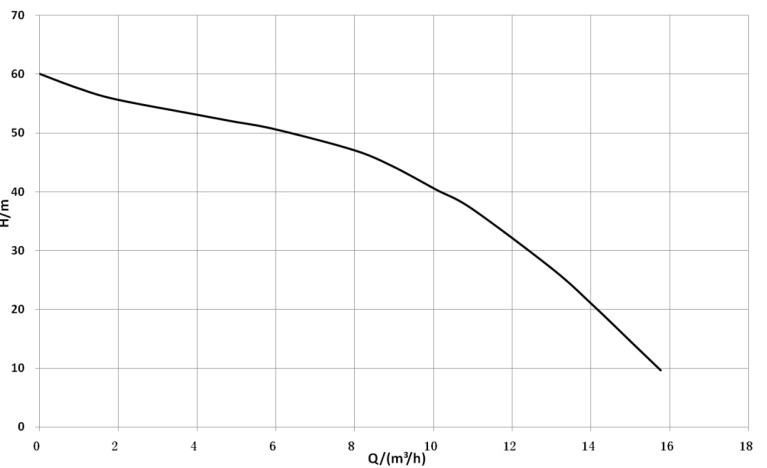

Head- Flow
Tags :
Rated voltage 380V Rated head 32m Rated flow 16m³/h Maximum head 48m Maximum flow 23m³/h Insulation class F Design pressure 10bar Vibration ＜2.8mm/s Protection clas IP54 Frequency 50Hz Rated current 4.52A Rated power 2200W Noise ＜63dB(A) Maximum power 3100W
Rated voltage 380V Rated head 25m Rated flow 16m³/h Maximum head 36m Maximum flow 23m³/h Insulation class F Design pressure 10bar Vibration ＜2.8mm/s Protection class IP54 Frequency 50Hz Rated current 4.01A Rated power 1850W Noise ＜63dB(A) Maximum power 2500W
Rated voltage 380V Rated head 38m Rated flow 8m³/h Maximum head 48m Maximum flow 15m³/h Insulation class F Design pressure 10bar Vibration ＜2.8mm/s Protection class IP54 Frequency 50Hz Rated current 3.62A Rated power 1500W Noise ＜62dB(A) Maximum power 1900W
Rated voltage 220V Rated head 28m Rated flow 8m³/h Maximum head 35m Maximum flow 15m³/h Insulation class F Design pressure 10bar Vibration ＜2.8mm/s Protection class IP54 Frequency 50Hz Rated current 6.55A Rated power 1100W Noise ＜62dB(A) Maximum power 1400W
Rated voltage 380V Rated head 46m Rated flow 4m³/h Maximum head 57m Maximum flow 9.5m³/h Insulation class F Design pressure 10bar Vibration ＜2.8mm/s Protection class IP54 Rated power 1100W Noise ＜60dB(A) Maximum power 1500W
Rated voltage 380V Rated head 35m Rated flow 4m³/h Maximum head 42m Maximum flow 9.5m³/h Insulation class F Design pressure 10bar Vibration ＜2.8mm/s Protection clas IP54 Frequency 50Hz Rated current 1.78A Rated power 750W Noise ＜60dB(A) Maximum power 1050W
Rated voltage 380V Rated head 28m Rated flow 4m³/h Maximum head 33m Maximum flow 9.5m³/h Insulation class F Design pressure 10bar Vibration ＜2.8mm/s Protection class IP54 Frequency 50Hz Rated current 1.48A Rated power 550W Rated head 28m Maximum power 850W Maximum head 33m Maximum Unit Efficiency 47% Insulation class F Noise ＜55dB(A)
Rated voltage 380V Rated head 28m Rated flow 2m³/h Max. head 33m Max. flow 6m³/h Insulation class F Design pressure 10bar Vibration ＜2.8mm/s Protection class IP54 Frequency 50Hz Rated current 1.48A Rated power 550W Noise ＜62dB（A） Max.power 650W
Model Basic 32-6S Pump Body Length 180mm Power 100/70/55W Max.flow 4.0m³/h Max head 6m Voltage/Current 115V/0.9A 230V/0.45A Frequency 50/60HZ Pump housing cast iron Pumped liquid Water Insulation class H Degree of Protection IP44 Liquid temperature range 2~110℃(mixture of glycol and water up to 50%) Max System Pressure 1.0Mpa Certificates CE, GS, UL, LVD, EMC, RoHS, REACH etc.
Enclosure class IPX4D (EN 60529) Insulation class H Supply voltage 1 × 230 V ± 10 % 50 Hz, PE Digital input PWM 0–10 V Analog input 4–20 mA. 0–10 W direct current Connection bus input Modbus RTU Leakage current Leakage < 3.5 mА. Leakage current is measured in accordance with EN 60335-1 EMC Standards applied: EN61000-3-2, EN61000-6-3, EN61800-3-3, EN55014-1 and EN55014-2
Product model Basic S 25-6S; Basic S 25-6SQ Ambient temperature 0 ~+40 °C Temperature of pumped liquid +2 ~ +110 °C Storage temperature -30 ~ +55 °C Pumps with unions 1.0 MPa (10 bar) Pump housing cast iron, stainless-steel(N) Port to port length 130/180mm
Rated voltage 380V Rated head 28m Rated flow 4m³/h Maximum head 33m Maximum flow 9.5m³/h Insulation class F Design pressure 10bar Vibration ＜2.8mm/s Protection class IP54 Frequency 50Hz Rated current 1.48A Rated power 550W Rated head 28m Maximum power 850W Maximum head 33m Maximum Unit Efficiency 47% Insulation class F Noise ＜55dB(A)
