Power supply |
220V, 50Hz single-phase AC |
|
Maximum system pressure |
≤0.3MPa |
|
Insulation class |
B |
|
Protection level |
IPX5 |
|
Ambient temperature during work |
within the range of 0°C to 50°C |
|
The temperature of the conveying liquid |
within the range of 5°C to 50°C |
|
Delivery liquid |
clear water |

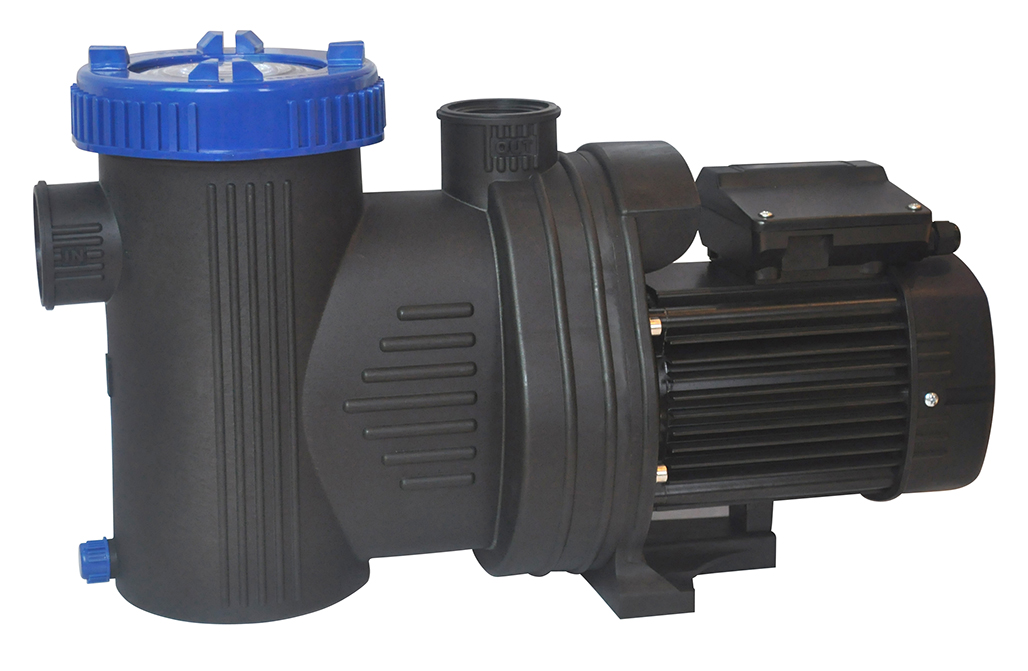

Item NO.:
SP-550A1. Used for circulating filtration of water pumps in various small family swimming pools;
2. For freshwater aquaculture water circulation filtration;
3. Used in the production of circulating water flow, fountains and other water features in various recreational attractions in the city;
4. Mariculture circulation filtration;
5. Swimming pool circulation filtration.
1. The flow parts of the pump are made of all engineering plastics;
2. The SUS304+45# shaft material is selected and matched with a special mechanical seal to realize the complete separation of the water shaft, so as to prevent corrosion and seal reliably;
3. The water shaft is separated, safe and reliable
1. Product production process testing items
1.1 Motor detection
1.1.1 Motor turn-to-turn impact detection;
1.1.2 Motor insulation resistance detection;
1.1.3 Motor ground withstand voltage detection;
1.1.4 Motor winding DC resistance detection;
1.1.5 Motor rotation test.
1.2 Assembly workshop
1.2.1 Grounding resistance detection of the whole pump;
1.2.2 Insulation resistance detection of the whole pump;
1.2.3 Pump withstand voltage leakage current detection;
1.2.4 Leakage current detection of the whole pump;
1.2.5 Low-voltage startup detection of the whole pump;
1.2.6 No-load power detection of the whole pump;
1.2.7 Check the no-load current of the whole pump.
2. Type test of the pump in the laboratory
2.1 Hydraulic performance inspection of the whole pump;
2.2 Noise and vibration detection of the whole pump;
2.3 Pump life test;
2.4 High and low temperature performance testing of the whole pump.
3. Working conditions
3.1 Power supply: 220V, 50Hz single-phase alternating current;
3.2 Maximum system pressure: 0.35MPa;
3.3 Insulation class: F;
3.4 Protection level: IP55;
3.5 Working environment temperature: 0℃～50℃;
3.6 The temperature of the conveying liquid: 5℃～50℃;
3.7 Delivery liquid: clean water.

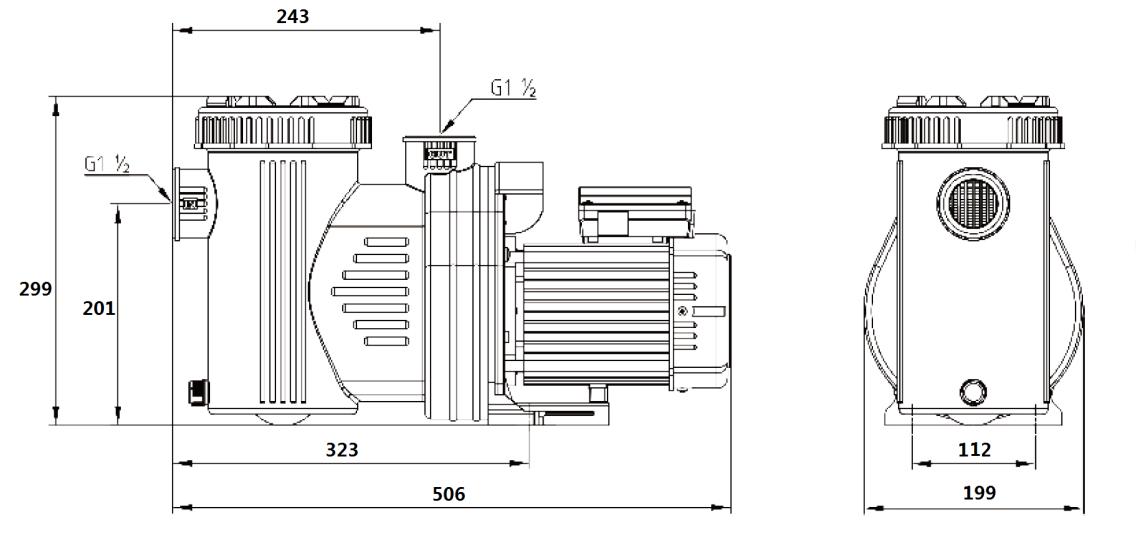

Installation Drawing：
Performance Parameter curves ：
H-----Head
P1----Input power
EM----Efficiency
Q-----Flow
Tags :
Power supply 220V, 50Hz single-phase alternating current Maximum system pressure ≤0.3MPa Insulation class B Protection level IPX5 Ambient temperature during work within the range of 0°C to 50°C The temperature of the conveying liquid within the range of 5°C to 50°C Delivery liquid clear water
Power supply 220V, 50Hz single-phase AC Maximum system pressure ≤0.3MPa Insulation class B Protection level IPX5 Ambient temperature during work within the range of 0°C to 50°C The temperature of the conveying liquid within the range of 5°C to 50°C Delivery liquid clear water
Power supply 220V, 50Hz AC Maximum system pressure ≤0.3MPa Insulation class B Protection level IPX5 Ambient temperature during work within the range of 0°C to 50°C The temperature of the conveying liquid within the range of 5°C to 50°C Delivery liquid clear water
Power supply 220V, 50Hz single-phase AC Maximum system pressure ≤0.3MPa Insulation class B Protection level IPX5 Ambient temperature during work within the range of 0°C to 50°C The temperature of the conveying liquid within the range of 5°C to 50°C Delivery liquid clear water
Power supply 220V, 50Hz single-phase AC Maximum system pressure ≤0.3MPa Insulation class B Protection level IPX5 Ambient temperature during work within the range of 0°C to 50°C The temperature of the conveying liquid within the range of 5°C to 50°C Delivery liquid clear water
Power supply 220V, 50Hz single-phase AC Maximum system pressure ≤0.3MPa Insulation class B Protection level IPX5 Ambient temperature during work within the range of 0°C to 50°C The temperature of the conveying liquid within the range of 5°C to 50°C Delivery liquid clear water
Enclosure class IPX4D (EN 60529) Insulation class H Supply voltage 1 × 230 V ± 10 % 50 Hz, PE Digital input PWM 0–10 V Analog input 4–20 mA. 0–10 W direct current Connection bus input Modbus RTU Leakage current Leakage < 3.5 mА. Leakage current is measured in accordance with EN 60335-1 EMC Standards applied: EN61000-3-2, EN61000-6-3, EN61800-3-3, EN55014-1 and EN55014-2
Maximum flow(m³/h) 8 Rating flow(m³/h) 4 Maximum head(m) 33 Rating head(m) 25 Inlet pipe diameter RP1 1/4" Outlet pipe diameter NPT1" Input powwer(KW) 0.8 IP class IP42
Pump Body Length 6 1/2 Feet Power 85/60/40W Max.flow 17.5 GPM Max head 15.5 Feet Current 0.74/0.6/0.44A Voltage/ Frequency 115/230V 50/60HZ Pump housing Cast iron Pumped liquid Water Insulation class H Degree of Protection IP44 Liquid temperature range 2-110℃ Max System Pressure 1.0MPA
Model Master SD 32-6 180 Maximum flow (m³/h) 3.8 Maximum head(m) 6.0 EEI EEI≤0.20-Part2 Rated voltage 220-240V AC Rated current 0.5 A Frequency 50/60Hz Maximum power 39 W Design pressure 1.0MPa Noise ≤42dB(A) IP class IP44 Insulation class H
Enclosure class IPX4D (EN 60529). Insulation class H. Supply voltage 1 × 230 V ± 10 % 50 Hz, PE Digital input PWM 0–10 V Analog input 4–20 mA. 0–10 W direct current Connection bus input Modbus RTU Leakage current Ileakage < 3.5 mА. Leakage current is measured in accordance with EN 60335-1. EMC Standards applied: EN61000-3-2, EN61000-6-3, EN61800-3-3, EN55014-1 and EN55014-2
Power supply voltage 220~240V 50/60Hz, AC Model Master 32-8 Power 70W Motor protection No external protection required IP class IP44 Insulation class H Humidity(RH) Max. 95% System pressure 1.0 MPa Certification CE/ GS/ EMC/RoHS2.0/REACH Environment temperature -30℃～+70℃ Temperature class TF110 Liquid temperature -20℃～+110℃(Glycol up to 50%) Type of connection/unions Molex /TE/ Shinhoo standard
