Power |
90/40w |
Max Head |
3.5m |
|
Voltage |
220v |
Rated Head |
2.5m |
|
Frequency |
50hz |
Diameter |
25mm |
|
Max Flow |
60l/min |
IP Class |
IP22 |
|
Rated Flow |
28l/min |
Temperature |
100℃ |

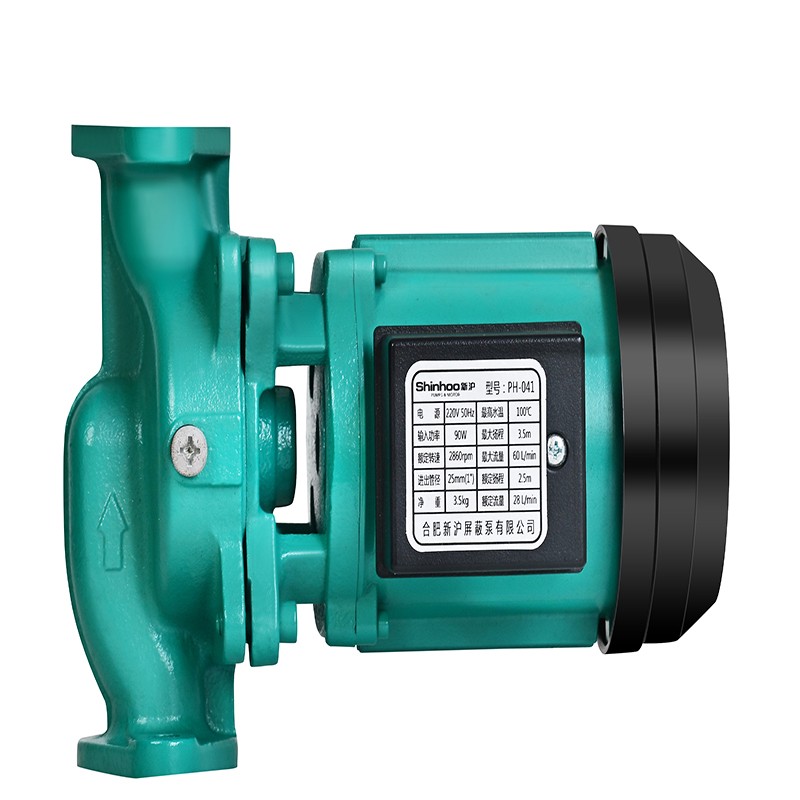

Item NO.:
PH-0411. For low pressure water supply;
2. Home HVAC circulation system;
3.Industrial water circulation system, cooling water circulation system;
1. The inside of the pump body adopts special coating, which is not easy to rust;
2. Large flow, compact structure design;
3. Environmental protection, beautiful appearance, convenient installation and reliable operation.
Working conditions
1. Power supply: 220V, 50Hz single-phase alternating current;
2. Maximum system pressure: 0.5MPa;
3. Insulation class: F;
4. Protection level: IP44;
5. Ambient temperature during work: 0℃～40℃;
6. The temperature of the conveying liquid: 0℃～90℃;
7. Delivery liquid: clean water.
Product production process testing items
1. Pump grounding resistance detection
2. Pump insulation resistance detection
3. Pump withstand voltage leakage current detection
4. Pump leakage current detection
5. Low voltage start-up detection of the whole pump
6. Pump no-load power detection
7. Pump no-load current detection
Type test of the pump in the laboratory
1. Hydraulic performance test of the whole pump
2. Pump noise and vibration detection
3. Pump life test
4. High and low temperature performance testing of the whole pump

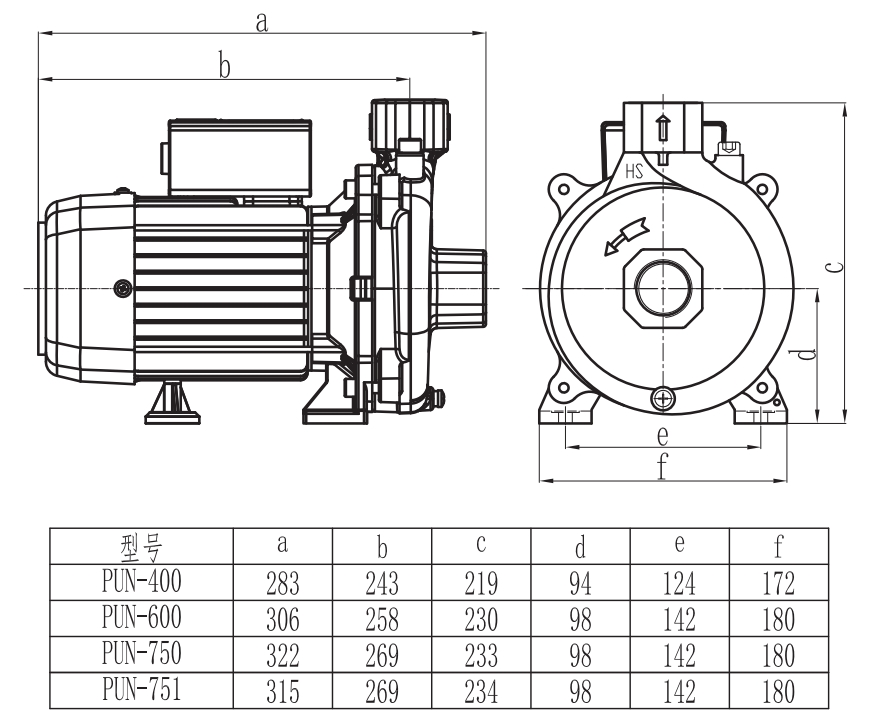

Installation Drawing
H-----Head
P1----Input power
EM----Efficiency
Q-----Flow
Tags :
Max. Flow(L/min) 100 Rated flow(L/min) 50 Max. Head(m) 15 Rated head(m) 10 Inlet diameter (mm) 40 Outlet diameter(mm) 40 Input power(W) 300 Output Power(W) 250
Max. Flow(L/min) 190 Rated flow(L/min) 135 Max. Head(m) 5 Rated head(m) 3 Inlet diameter (mm) 50 Outlet diameter(mm) 50 Input power(W) 220 Output Power(W) 125
Max. Flow(L/min) 190 Rated flow(L/min) 135 Max. Head(m) 5 Rated head(m) 3 Inlet diameter (mm) 50 Outlet diameter(mm) 50 Input power(W) 220 Output Power(W) 125
Max. Flow(L/min) 130 Rated flow(L/min) 85 Max. Head(m) 5 Rated head(m) 3 Inlet diameter (mm) 40 Outlet diameter(mm) 40 Input power(W) 200 Output Power(W) 100
Max. Flow (m³/h) 18 Max. Flow (m³/h) 7.8 Max. Head (m) 20 Rated head(m) 16 Inlet diameter (mm) 50 Outlet diameter(mm) 50 Input power(KW) 1 Output Power(KW) 0.75
Max. Flow(m³/h) 25.02 Max. Flow(m³/h) 15.96 Max. Head(m) 25 Rated head(m) 15 Inlet diameter (mm) 50 Outlet diameter(mm) 50 Input power(kw) 1.75 Output Power(kw) 1.5
Power 320/200w Max Head 15m Voltage 1-220/3-380w Rated Head 10m Frequency 50hz Diameter 25mm Max Flow 80l/min IP class IP22 Rated Flow 38l/min Temperature 90℃
Power 680/400w Max Head 21m Voltage 1-220/3-380w Rated Head 15m Frequency 50hz Diameter 32mm Max Flow 100l/min IP Grade IP44 Rated Flow 50l/min Temperature 90℃
Max. Flow(L/min) 360 Rated flow(L/min) 220 Max. Head(m) 23 Rated head(m) 15 Inlet diameter (mm) 50 Outlet diameter(mm) 50 Input power(W) 1500 Output Power(W) 1100
Max. Flow(L/min) 125 Rated flow(L/min) 80 Max. Head(m) 30 Rated head(m) 20 Inlet diameter (mm) 32 Outlet diameter(mm) 32 Input power(W) 1250 Output Power(W) 750
Max Flow 8.5m³/h Rated Flow 6m³/h Pressure 1.0MPa Noise index ＜58dB(A)(Max flow) Max Head 28m Rated Head 22m Insulation IP55 Weight 5.7kg±5% Voltage AC 220V/50Hz Max Input Power 700W Max Rotation Speed 5000rpm
Max. flow(m³/h) 5.5 Rated flow(m³/h) 3 Design pressure 1.0MPa Max. head(m) 45 Rated head(m) 30 Protection class IP44 Voltage AC 220V/50Hz Max. input power 600W Max. speed 5000rpm Protection class IP44 Voltage AC 220V/50Hz Max. input power 600W Max. speed 5000rpm
