Max. Flow(L/min) |
100 |
Rated flow(L/min) |
50 |
|
Max. Head(m) |
15 |
Rated head(m) |
10 |
|
Inlet diameter (mm) |
40 |
Outlet diameter(mm) |
40 |
|
Input power(W) |
300 |
Output Power(W) |
250 |

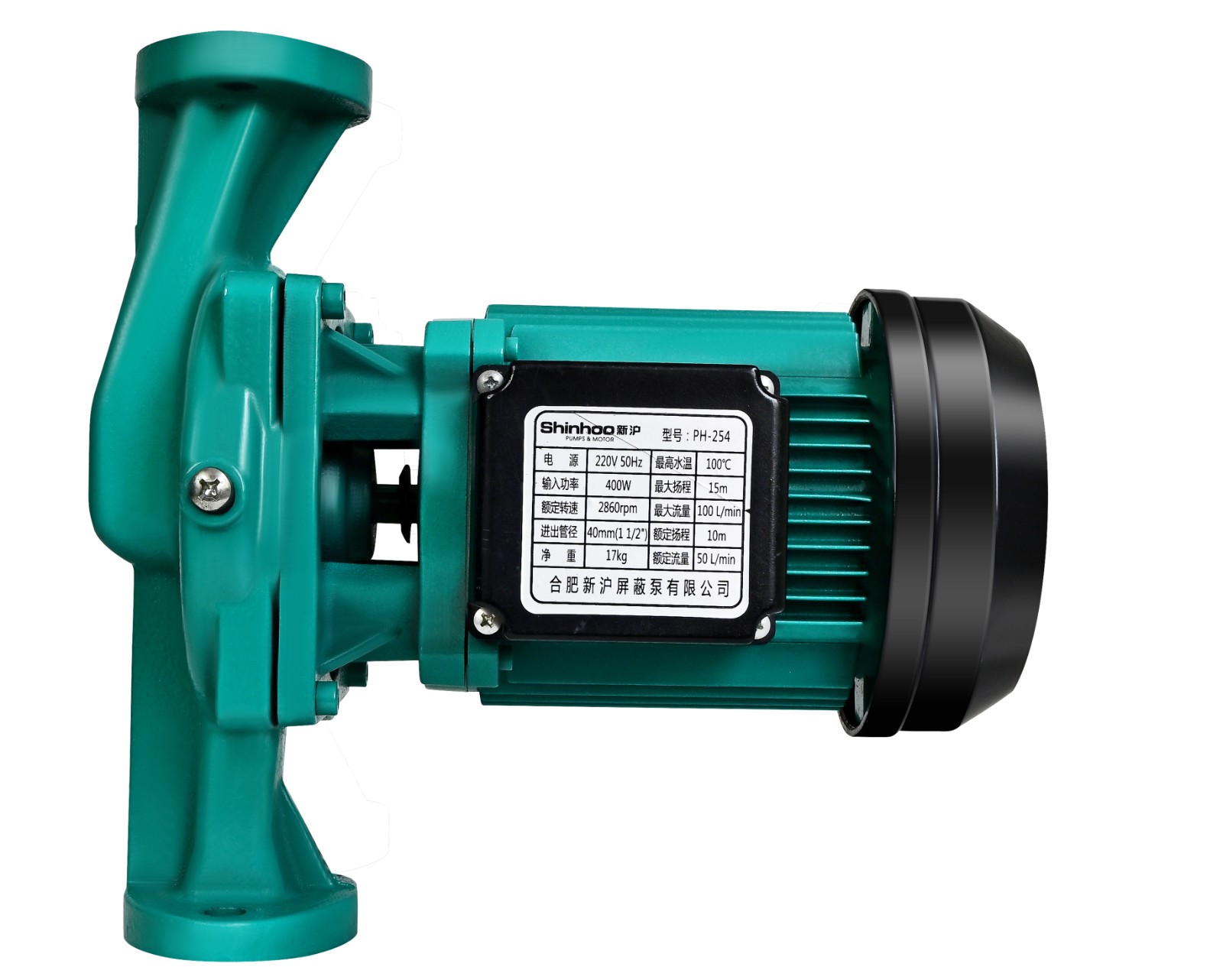

Item NO.:
PH-2541. For low pressure water supply;
2. Home HVAC circulation system;
3.Industrial water circulation system, cooling water circulation system;
1. The inside of the pump body adopts special coating, which is not easy to rust;
2. Large flow, compact structure design;
3. Environmental protection, beautiful appearance, convenient installation and reliable operation.
4. Pipeline installation, easy connection
5. Compact structure, space-saving
6. Low noise, long life
Working conditions
1. Power supply: 220V, 50Hz single-phase alternating current;
2. Maximum system pressure: 0.5MPa;
3. Insulation class: F;
4. Protection level: IP44;
5. Ambient temperature during work: 0℃～40℃;
6. The temperature of the conveying liquid: 0℃～90℃;
7. Delivery liquid: clean water.
Product production process testing items
1. Motor detection
1.1 Motor turn-to-turn impact detection;
1.2 Motor insulation resistance detection;
1.3 Motor ground withstand voltage detection;
1.4 Motor winding DC resistance detection;
1.5 Motor steering test.
2. Assembly workshop
2.1 Grounding resistance detection of the whole pump;
2.2 Insulation resistance detection of the whole pump;
2.3 Pump withstand voltage leakage current detection;
2.4 Pump leakage current detection;
2.5 Low-voltage start-up detection of the whole pump;
2.6 No-load power detection of the whole pump;
2.7 No-load current detection of the whole pump.
Type test of the pump in the laboratory
1. Hydraulic performance inspection of the whole pump;
2. Noise and vibration detection of the whole pump;
3. Temperature rise test of the whole pump;
4. Blockage test of the whole pump;
5. Low voltage start;
6. IP rating test.

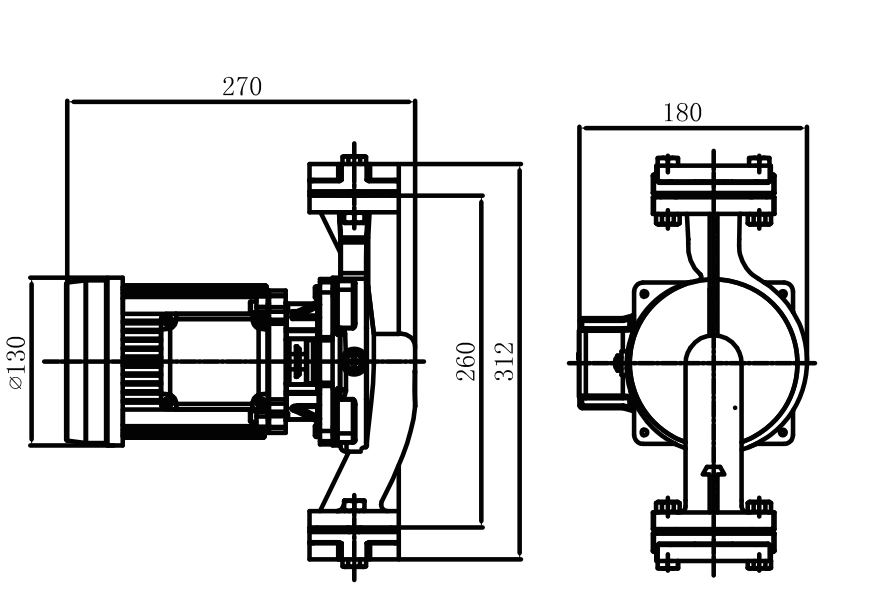

Installation Drawing

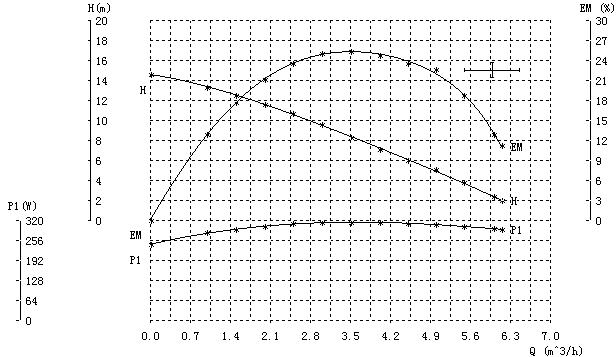

H-----Head
P1----Input power
EM----Efficiency
Q-----Flow
